Virtual meetings speed building design and engineering
Water utility managers and consultants use electronic design and project review to hammer out the details of a new, hurricane-resilient sample-testing laboratory.
Environmental Services Laboratory, South Florida Water Managemen…
Environmental Services Laboratory, South Florida Water Management District, West Palm Beach, Fla., is a new-construction, two-story office and laboratory building totaling 34,778 square feet on a 1-acre site.
CJ Walker Photography
SFWMD regulates water use throughout the South Florida region, s…
SFWMD regulates water use throughout the South Florida region, so the district practiced what it preached about water conservation by installing a water cistern and a graywater system (shown).
CJ Walker Photography
The multifunctional rooftop contains ice storage, chillers, and …
The multifunctional rooftop contains ice storage, chillers, and laboratory exhaust fans.
CJ Walker Photography

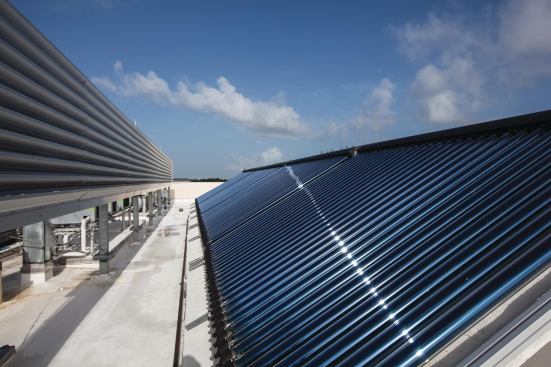

Thermal solar water heaters.
CJ Walker Photography
Sun shades were installed over the windows on the south and west…
Sun shades were installed over the windows on the south and west sides of the building.
CJ Walker Photography
Laboratory
CJ Walker Photography
From left: Dana Gillette, (PE, LEED AP) project manager with des…
From left: Dana Gillette, (PE, LEED AP) project manager with design firm Erdman Anthony, and David Struve, Analytical Services section administrator with South Florida Water Management District, authored PUBLIC WORKS' November issue cover story about designing the district's Leed Gold-certified Environmental Services Building.
Web Extra
On Tap Wastewater-treatment plants used to be dirty buildings. Today, architects are cleaning them up. By Lisa Owens Viani, Architect magazine
In Florida’s fragile ecosystem and economy, using less water and energy should be a key goal of all public facilities. So when South Florida Water Management District (SFWMD) managers built a new environmental services laboratory to bring all SFWMD scientists under one roof, their mandate to designers was to conceptualize a building that would show their 7.7 million constituents how to conserve energy and water.
Having coped with power outages and other operational havoc wreaked by three hurricanes during a two-year span, they also wanted a building that could survive a Category 4 (140-mph)storm. To satisfy these two equally challenging requirements, it was essential that all project team members meet regularly. But as is often the case, not everyone was using the same building information modeling, design, engineering, and project-management software.
Project participants needed Web-based collaboration tools that would keep everyone informed at all stages. To keep communication lines open and ideas free-flowing while ensuring the information’s integrity, design firm Erdman Anthony used two project/information management tools and one communication tool:
Project information management (PIM) software — Newforma’s Project Center (7th edition) to electronically index, search, track, and share computer-aided design files, emails, design reports, PowerPoint presentations to the management team, contractor submittals of shop drawings, and requests for information. This empowered team members to deal with the flood of deliverables, sketches, revisions, and suggestions earlier in the design process than they could have otherwise — which gave them more time for review. All documents were scanned into the program and available digitally.
The software also includes a form that was used to input contract submittals. Design team members reviewed the submittals and sent completed reviews to the district. The program then generated reports of that information, showing open submittals and the time left to respond.The PIM software suite is priced as an enterprisewide annual subscription license fee, based on the size of the customer.
The PIM software suite is priced as an enterprisewide annual subscription license fee, based on the size of the customer.
Electronic design review — District managers introduced ProjNet DrChecks Design Review and Checking System, created by the U.S. Army Engineering Research and Development Center. The software program is licensed to the nonprofit National Institute of Building Sciences and is used by federal agencies to electronically — and securely — exchange comments and information on plans with all tiers of consultants, designers, internal managers, and reviewers.
The reviewers received paper copies of the plans (or electronic copies on CD) and then entered their comments into the system. They also attached a document (PDF, Word, etc.) to their comments when needed. The system allows users to run reports on open comments, comments by discipline, comments by reviewer, etc. The reports show the comments, responses, and backchecks, so the thought process can be reviewed at a later date.Depending on the number of projects for which it’s used, an annual subscription for DrChecks can cost from approximately $17,000 to $34,000, plus a one-time set-up fee of $5,000.
Videoconferencing — Designers were geographically spread out across Florida and New York, so periodic progress meetings were held via Citrix Online LLC’s GoToMeeting.com, which has an interactive, classroom-style format. Subscribers can access the online tool for $49/month or $468/year.
Team members learned how to use all three programs fairly quickly. Within a few weeks everyone was comfortable with Newforma, and within a few days they were using DrChecks reliably. All users mastered www.gotomeeting.com in less than a day.
How it worked: design review
At the initial half-day kick-off meeting, stakeholders, users, and district managers contributed their expectations of and vision, needs, and criteria for the project. The group also visited the site to further define project scope. The information gathered during this initial phase informed the criteria used to create the 30% design documents.
Design review began with a daylong in-person presentation that:
1. Outlined the criteria and where the project was headed
2. Showed sketches and information for each segment of the project.
During the afternoon, each discipline — HVAC, electrical, plumbing, civil, geotechnical, structural, architectural, etc. — broke out into separate sessions to review preliminary designs in that area. These discussions led to specific suggestions like using preferred vendors, revising room sizes, and adding a deck for outdoor experimentation.
When the breakout sessions ended, the design team delivered the Basis for Design Report to SFWMD. Peer reviewers used DrChecks to log questions, concerns, and suggestions, which could be viewed by all users as soon as they were entered. The design team responded until each item was resolved. In all, this process took about three weeks.
Throughout the design phase, the design team made three one-hour presentations to the district’s management team. The first showed how issues from the Basis of Design Report were resolved. The second and third meetings were held after 30% design and when final design submittals were ready, respectively.
When designers and the district employees assigned to the project couldn’t resolve an issue, district managers made the final decision. For example, employees were cautious about using pervious pavement. Managers, however, supported this sustainable element because it improves water quality and stormwater runoff — elements that the district regulates — and directed that it be used on a larger portion of the site.
How it worked: quality control
District managers place a high priority on quality control (QC), so they added two weeks to each scheduled submittal phase for the design team to review documents before presenting them.
They also hired peer-review firms representing architects and engineering disciplines and asked some employees to participate using DrChecks. Reviewers entered comments and the project team answered them. The program shows who’s commented and whose comments are pending, and tracks the outcome of these back-and-forth discussions on each issue.
Change orders: 3% of project costs
Although there’s been some grumbling in the design and engineering community about making peer review so transparent, the process produced better plans that required fewer changes. Another indicator that documents were clear-cut, with few areas open for interpretation: eight of the 10 prequalified construction contractors submitted bids that were well under budget and within a narrow 7% spread.
When the project moved into construction, the team used Newforma software to manage the RFI (request for information) and submittal processes. When RFIs or submittals were received via email, the design firm’s project manager logged them into the software program, assigned them to the appropriate team member to review and respond, and assigned a due date (generally seven days from submittal date).
The response to each RFI also underwent the QC process. Some submittals were reviewed by all team members, others by just one. For example, the electrical team member would review and respond to an electrical question, but a question about enlarging an HVAC duct could involve the mechanical engineer, architect, and structural engineer. All team members had access to all RFIs via the Information Exchange element of the Newforma software.
Obtaining LEED Gold
Although SFWMD’s initial goal was to achieve LEED Silver certification for the laboratory building, project architect Acai Associates Inc. encouraged the district to aim higher. Some of the water and energy savings designed into the $8.2 million facility include:
A graywater collection system for non-potable uses
Low-flow fixtures and hand sensors to cut potable water use by 30%
Pervious concrete in parking areas and sidewalks to reduce pollution from runoff
High-efficiency mechanical, electrical, and air-conditioning systems to reduce energy use
Energy-efficient window and lighting systems
An off-peak ice-storage system to reduce daytime air-conditioning needs
Roofing and pavement with reflective materials to keep the building and adjacent areas cooler
Recycled, low-emitting, and regional materials
Spaces set aside for bicycles and low-polluting transportation to encourage efficient transportation.
In July 2012, the facility received LEED Gold certification, which underscores the district’s commitment to the environment.
— Gillette (gilletted@erdmananthony.com) is a project manager for Erdman Anthony (www.erdmananthony.com). Struve (dstruve@sfwmd.gov) is the Analytical Services section administrator for the South Florida Water Management District (www.sfwmd.gov).
Preventing power outages
One of the South Florida Water Management District Environmental Service Laboratory’s functions is to store sensitive water samples that require refrigeration. The samples cannot be replaced, so their loss would be costly. Because the facility must be able to maintain near-mission-critical standards, it’s designed to withstand high-velocity winds with no or minimal damage and has emergency backup systems capable of sustaining operations for seven days.
Windows are designed to Miami Dade County’s impact criteria.
The Caterpillar C-15 450-kilowatt generator is connected to the power system through electronic transfer switches that automatically transfer power to the generator when utility power is lost.
The generator’s size was determined by the amount of lab equipment requiring continuous operation when power is lost, by the parts of the building that need to be illuminated, and by the portions of the building where conditioned air is required from the HVAC system. With these considerations in mind, the generator required a prime, rather than standby, rating to accommodate extended run times.
Preventing power outages
One of the South Florida Water Management District Environmental Service Laboratory’s functions is to store sensitive water samples that require refrigeration. The samples cannot be replaced, so their loss would be costly. Because the facility must be able to maintain near-mission-critical standards, it’s designed to withstand high-velocity winds with no or minimal damage and has emergency backup systems capable of sustaining operations for seven days.
Windows are designed to Miami Dade County’s impact criteria.
The Caterpillar C-15 450-kilowatt generator is connected to the power system through electronic transfer switches that automatically transfer power to the generator when utility power is lost. The generator’s size was determined by the amount of lab equipment requiring continuous operation when power is lost, by the parts of the building that need to be illuminated, and by the portions of the building where conditioned air is required from the HVAC system. With these considerations in mind, the generator required a prime, rather than standby, rating to accommodate extended run times.
